High Reliability COE Series

COE Eighth Brick 132W

     The high reliability COE standard series is based on the long term supported COE design platform, which has been produced for more than 15 years with uncountable stress testings and reliability verifications. Its fully regulated outputs with 157W/in3 power density and 93% conversion efficiency is one of the performance benchmarks of the dc-dc industry from it was announced until today.

    By equipping the UltraFast i-Limit technology, the COE module eliminates the so called "short circuit current runaway" caused by serious fault condition, and further removes the limitations of driving high-surge-current non-Ohmic loads such as motors or incandescent lamps. This unique advantage of COE leads different input/output parameters and module packaging have been requested during past 10 years, when resulting in more than 100 customized models are available now.

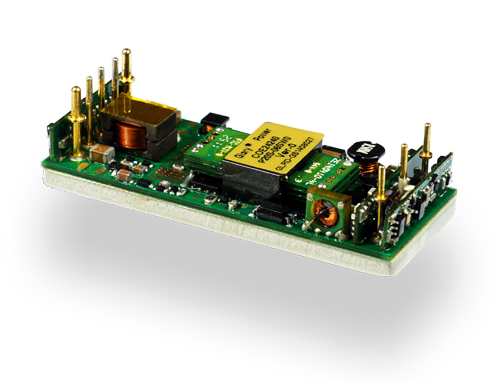

Open Frame COE Standard
Metal-Enclosed COE Standard
General
Model Number
 Input
 Output
 Available Models
 Standard Model Stock
Available Customization
 Parameter Range and Functions
COE48120 36V~75V 12.0V/11A 16 100
 Input range
 8V~75V, 2X~4X
COE48050 36V~75V 5.0V/25A
 11 50
 Output current
0.4X~1.0X of rated IO
COE48033 36V~75V 3.3V/30A
 2 50
 Output voltage
 factorized +10%/- 25% of rated VO
COE36120 18V~75V 12.0V/10A 8 0 Trim range +10% to -30%
COE36050 18V~75V 5.0V/20A 1 0 Temperature -40ºC to 130ºC
COE36033 18V~75V 3.3V/25A 1 0 Packaging Open-frame or Metal-Enclosed
COE24120 18V~36V
 12.0V/11A
 32 50
 Pin length
 0.12", 0.16", 0.20" and 0.24"
COE24050 18V~36V 5.0V/25A
 14 50
 Base-plate
 1,3 and 5mm metal-plate or heat-sink-plate
COE24033 18V~36V 3.3V/30A 3 50 Isolation
 1.5kVdc~3.0kVdc
Non-Standard 9V~75V 1.5V~28V 15 0 Protection OTP, OVP and OCP with CCL or Hiccup

Email to get further technical information or supporting, and click here to find more Glary products.
